- Consists of:1x D26/6B1x DL251x CW80021x DLV-S12
%
- Consists of:1x D26/6B1x DL251x CW80021x PCR/50B1x DLVS-D12
%
- Consists of:1x D26/6B1x D251x CW80021x PCR/50B1x DLVS-S12
%
Realisation "double walled".Charging height glasses 300 mm. From 60-24 baskets/hour, cycle 60" - 120" - 150".Rotating wash and rinse arms (upper and below).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel.Automatic filling of the tank.Check valve.Hot water rinse (water consumption per cycle 2 liters), stainless steel boiler (2,6 Lit., 2,65 kW).Micro switch, when the door opens.Safety thermostat.Manufactured in stainless steel AISI...
%
Realisation "double walled".Version with incorporated water softener.Charging height glasses 300 mm. From 60-24 baskets/hour, cycle 60 - 120 - 150" .Rotating wash and rinse arms (upper and below).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel.Automatic filling of the tank.Check valve.Hot water rinse (water consumption per cycle 2 liters), stainless steel boiler (2,6 Lit., 2,65 kW).Micro switch, when the door opens.Safety...
%
Realisation "double walled".Version with incorporated discharge pump.Charging height glasses 300 mm. From 60-24 baskets/hour, cycle 60 - 120 - 150" .Rotating wash and rinse arms (upper and below).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel.Automatic filling of the tank.Check valve.Hot water rinse (water consumption per cycle 2 liters), stainless steel boiler (2,6 Lit., 2,65 kW).Micro switch, when the door opens.Safety...
%
Realisation "double walled".With anti-pollution device type AB (Break Tank), including the discharge pump (atmospheric boiler)Standard with disharge pump.Charging height glasses 300 mm. From 60-24 baskets/hour, cycle 60 - 120 - 150" .Rotating wash and rinse arms (upper and below).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel.Automatic filling of the tank.Check valve.Hot water rinse (water consumption per cycle 2 liters), stainless...
%
%
Realisation "double walled".Loading height for trays 380 mm (plates diam. 380 mm).LMD mixed washing, also dishes, cutleryStandard rinsing pump (atmospheric boiler)Made of double walls made of stainless steel AISI 304.Cycles 60'' - 120"-80" or continuous.Rotating washing and rinsing arms (upper and lower) (stainless steel lower).Self cleaning sprinklers.Tank (23Lit. 2,1Kw) with rounded edges, "deep-drawn" bottom."Integral" tank filter, made of "cast" stainless steel.Adjustable stainless steel...
%
Realisation "double walled".Loading height for trays 650mmCID door (double wall) with automatic closing "soft contact" (partial opening for steam evacuation)Double door guillotine (isolated double wall) and counterbalanced.Standard rinsing pump (atmospheric boiler)Cycles 120''- 240'' - 360'' or continuous.Rotating washing and rinsing arms.Self-cleaning nozzles.Deep-drawn walls.Adjustable stainless steel feet (160-220 mm).Removable control panel.USB" port for software update.Pump increasing...
%
Realisation "double walled".Charging height dishes diam. 390mm (glass height 355mm) From 60 till 24 baskets/hour, cycles 60'' - 150 '' and continious.Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel. Automatic filling of the tank.Stamped basket runners, no roughness and no limestone scale.Check valve. Hot water rinse, stainless steel boiler (6 Lit., 6...
%
%
%
Realisation "double walled".Version with incorporated water softener. ( ATTENTION: cold water connection) Charging height dishes diam. 390mm (glass height 355mm) From 60 till 24 baskets/hour, cycles 60'' - 150 '' and continious.Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel. Automatic filling of the tank.Stamped basket runners, no roughness and no limestone...
%
Realisation "double walled".Version with incorporated drain pump.Charging height dishes diam. 390 mm (glass height 355mm) From 60 till 24 baskets/hour, cycles 60'' - 150 '' and continious.Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel. Automatic filling of the tank.Stamped basket runners, no roughness and no limestone scale.Check valve. Hot water rinse,...
%
Realisation "double walled".With anti-pollution device type AB (Break Tank), Including the rinsing pump (atmospheric boiler)Standard with disharge pump.Charging height dishes diam. 390mm (glass height 355mm) From 60 till 24 baskets/hour, cycles 60'' - 120'' - 150 ''.Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel.Automatic filling of the tank.Stamped basket...
%
%
Realisation "double walled".Continuous water softener, incorporated (ATTENTION: connection to cold water).With anti-pollution device type AB (Break Tank), Including the rinsing pump (atmospheric boiler)Standard with disharge pump.Charging height dishes diam. 390 mm. From 60 till 24 baskets/hour, cycles 60'' - 120'' - 150 ''.Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable...
%
Realisation "double walled".Version monophase 230/1N 50 Hz.Charging height dishes diam. 390 mm. (glass height 355mm) From 60 till 24 baskets/hour, cycles 60'' - 150 '' and continious.Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).Self cleaning sprinklers.Double wall door, "stamped", "removable" waterproof seal.Removable control panel. Automatic filling of the tank.Stamped basket runners, no roughness and no limestone scale.Check valve. Hot water rinse,...
%

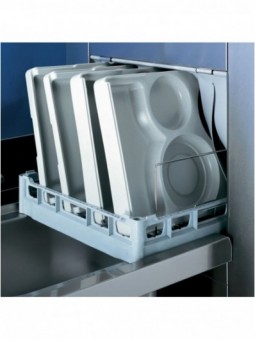

Production capacity 200 baskets/hourWashing + rinsing3 forward speedsPredisposed for left-hand entryLoad height 440 mmAnti-pollution device type AB "Break Tank"Flushing pump as standard (atmospheric boiler).Made of AISI 304 stainless steel, between 12/10 mm and30/10 mm thick, double-walled for better insulationthermal and acoustic (- 60 db), adjustable stainless steel feet.Linear or angular layout with left or right input.Traction system with parallel bars made of steelstainless...
%
%
%
%
General characteristics:AISI 304 stainless steel finish, between 12/10 mm and 30/10 mm thick, double cavity for better thermal and acoustic insulation (-60dB), adjustable stainless steel feet.Linear or angular implantations with left and right entries.Traction system with parallel stainless steel bars.Automatic advance system with 3 speeds.Ability to perform a continuous, basket-by-basket or delayedwash."Reversible" traction system, right left entry.Counter balanced wide opening doors with...
