• Production capacity 200 baskets/hour
• Washing + rinsing
• 3 forward speeds
• Predisposed for left-hand entry
• Load height 440 mm
• Anti-pollution device type AB "Break Tank"
• Flushing pump as standard (atmospheric boiler).
• Made of AISI 304 stainless steel, between 12/10 mm and

30/10 mm thick, double-walled for better insulation
thermal and acoustic (- 60 db), adjustable stainless steel feet.

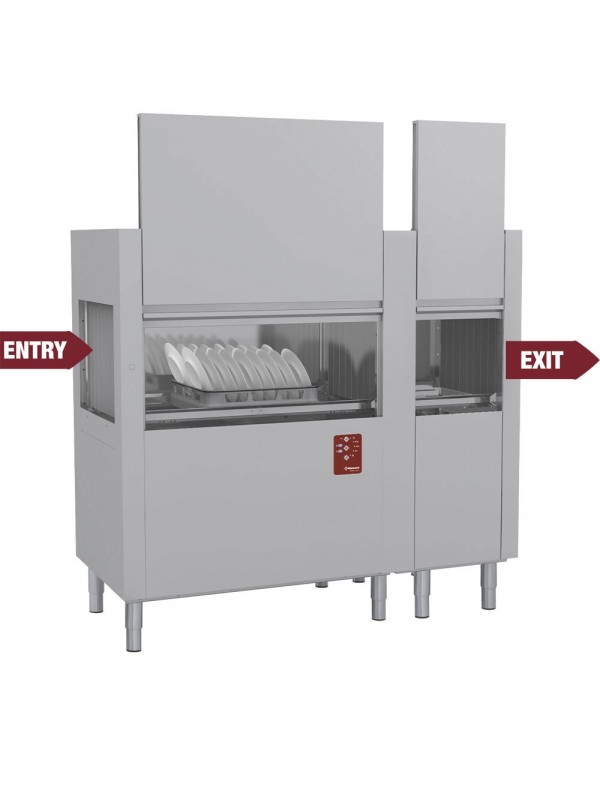

• Linear or angular layout with left or right input.
• Traction system with parallel bars made of steel

stainless steel.

• Automatic advancement of the trays.
• Possibility to work continuously or basket by basket, washing

timed.

• Wide doors, easy opening, thanks to the "counterbalanced" system, equipped with a stop in open position, for access to the inside of the machine.
• Water curtains at the inlet and outlet (standard)
• Deep-drawn tanks, rounded corners, with resistors for temperature maintenance.
• Integral extractable filters, in stainless steel AISI 304, above

of the tanks.

• Automatic levelling of water in the tanks.
• Rinsing saver to reduce the consumption of water and rinsing agent
• Stainless steel washing and rinsing arms, removable and interchangeable without tools.
• Washing, pre-washing and rinsing pump (double flow), placed in inclined position "self draining", equipped with a stainless steel filter.
• Boiler in stainless steel, with thermal insulation.
• Thermostat to control the boiler temperature at 90°C.
• "Thermocontrol" device ensuring rinsing at a temperature of 85°C.
• Digital "soft touch" control panel, waterproof with display of tank and boiler temperature, self-diagnosis in case of anomalies.
• Built-in USB port (on the electronic board)

Security :

• Low voltage control (24V).
• Safety thermostat for the boiler temperature at 110°C.
• End-of-travel stop system (standard).
• DIP switch to stop the unit as soon as the doors are opened.
• Resistance protection.
• Pump protection.
• Traction system protected by automatic shutdown by means of a

presence of foreign bodies.

Staffing :

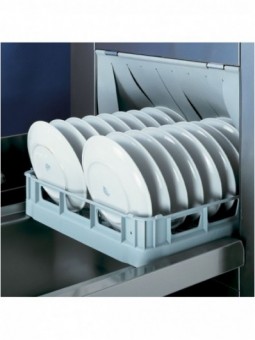

• 2 baskets 18 plates.

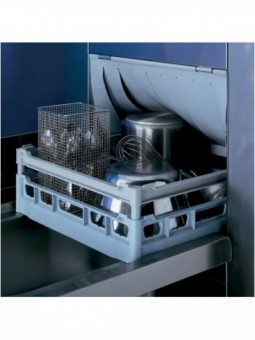

• 1 generic basket.
• 1 cutlery compartment.

PLUS - Traction Plus Line :

• Star Wash more, even more savings for a perfect result.... The Traction Plus Line range, thanks to a greater number of washing arms, offers you superior productivity, without harming, which is why Diamond® dishwashers are renowned for their high quality washing.
• Top Rinse, for a sparkling result.... Thanks to three sections, two of which are pre-rinsing, Diamond® dishwashers incorporate a real "final wash" that reinforces the action of the rinsing liquid, thus increasing the brilliance and speed of drying the dishes.
• Full Control, integrated intelligence.... With its "soft touch" control panel, Diamond® dishwashers allow you to easily and intuitively control the functions. The "LED" display of the boiler and tank temperatures as prescribed by HACCP standards, as well as the self-diagnosis messages in case of anomalies, will be of great help.
