- 4 independent plates (2x 1.8 kW and 2x 2,5 kW).- " Deep-drawn " upper top. - Made of stainless steel AISI 304, adjustable feet. - Glass-ceramic with infra-red radiant cooking zones, the system of the glass-ceramic hobs is characterized by a rapid heating of the heaters and their cooling after use. The heating power is regulated by a graduated energy regulator for each cooking zone. - The appliance is built in compliance with all current EC regulations.
Cooking surface 830x705 mm (58,51 dm2).Cupboard, (GN 2/1) (660x940xh360 mm). Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm) in stainless steel AISI 304.Chimney in stainless steel AISI 304.Cast iron cooking plate (15 mm) with high thermal conductivity, inclined forward and provided with an anti-splash edge on 3 welded sides (3 mm) in stainless steel, waterproof. Tray for recuperation of the roasting liquid.Electric heating by stainless steel...
- 5 independent plates, Ø 180 mm (5x 2 kW).- " Stamped " upper top. - Made of AISI 304 stainless steel. - Cast iron plates, Ø 180 mm with stainless steel sealing edge. Heating power regulation by 6-position switch. - The appliance is built in compliance with all the regulations (CE) in force.
Cooking surface 830x705 mm (58,51 dm2).Version: "50 μm" hard chromium plate (Certified food-grade in compliance with European regulation CE n.1935/2004).Cupboard, (GN 2/1) (660x940xh360 mm). Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm) in stainless steel AISI 304.Chimney in stainless steel AISI 304.Cast iron cooking plate (15 mm) with high thermal conductivity, inclined forward and provided with an anti-splash edge on 3 welded sides (3 mm) in...
5 independent plates, Ø 180 mm (5x 2 kW). " Stamped " upper top.Made of AISI 304 stainless steel.Cast iron plates, Ø 180 mm with stainless steel sealing edge. Heating power regulation by 6-position switch.The appliance is built in compliance with all the regulations (CE) in force.
Cooking surface 830x705 mm (58,51 dm2).Cupboard, (GN 2/1) (660x940xh360 mm) Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm) in stainless steel AISI 304.Chimney in stainless steel AISI 304.Cast iron cooking plate (15 mm) with high thermal conductivity, inclined forward and provided with an anti-splash edge on 3 welded sides (3 mm) in stainless steel, waterproof. Tray for recuperation of the roasting liquid.Electric heating by stainless steel...
- 5 independent plates, Ø 180 mm (5x 2 kW). - Electric convection oven GN 1/1 (3 kW), 530x340xh325 mm.- " Deep-drawn " upper top. - Made of AISI 304 stainless steel, adjustable stainless steel feet. - The oven enclosure and the double-walled door are provided with thermal insulation. Oven door on spring hinges, stainless steel handle. - Cast iron plates, Ø 180 mm with stainless steel sealing edge. Heating power regulation by means of a 6-position switch. - Electric convection oven (GN),...
Cooking surface 830x705 mm (58,51 dm2).Version: "50 μm" hard chromium plate (Certified food-grade in compliance with European regulation CE n.1935/2004).Cupboard, (GN 2/1) (660x940xh360 mm). Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm) in stainless steel AISI 304.Chimney in stainless steel AISI 304.Cast iron cooking plate (15 mm) with high thermal conductivity, inclined forward and provided with an anti-splash edge on 3 welded sides (3 mm) in...
- 5 independent plates, Ø 180 mm (5x 2 kW). - Electric convection oven GN 1/1 (3 kW), 530x340xh325 mm.- " Deep-drawn " upper top. - Made of AISI 304 stainless steel, adjustable stainless steel feet. - The oven enclosure and the double-walled door are provided with thermal insulation. Oven door on spring hinges, stainless steel handle. - Cast iron plates, Ø 180 mm with stainless steel sealing edge. Heating power regulation by means of a 6-position switch. - Electric convection oven (GN),...
Cooking surface 830x705 mm (58,51 dm2). Cupboard, (GN 2/1) (660x940xh360 mm). Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm) in stainless steel AISI 304.Chimney in stainless steel AISI 304.Cast iron cooking plate (15 mm) with high thermal conductivity, inclined forward and provided with an anti-splash edge on 3 welded sides (3 mm) in stainless steel, waterproof. Tray for recuperation of the roasting liquid.Electric heating by stainless steel...
2 burners (9Kw) High Efficiency-Flexibility.Cupboard (GN 1/1) (340x940xh360 mm). Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm), liquid collection bowl in stainless steel AISI 304, stamped and waterproof.Chimney in stainless steel AISI 304.Burners in cast iron treated waterproof, brass crown (with very high efficiency). Regulation of burners from 2 to 9kW by gas valve, pilot ignition and thermocouple safety, frontal accessibility allowing a very...

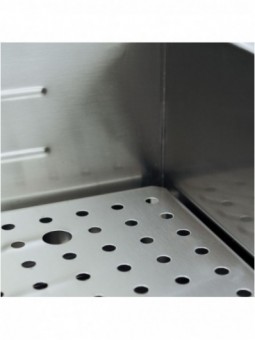

- Tank dimensions: 245x465xh170 mm, for GN containers up to 150 mm.- Made of stainless steel AISI 304, levelling feet. - Tank in AISI 304 stainless steel, equipped as standard with a perforated bottom grid, a drain cock (ball valve) is placed on the front of the appliance. - Electric heating, by means of stainless steel armoured resistances, placed under the bottom of the tank, outside. ON/OFF switch, temperature regulation from 30°C to 90°C, by thermostat. - The appliance is built in...
4 burners (9Kw) High Efficiency-Flexibility.Cupboard (GN 2/1) (660x940xh360 mm) Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm), liquid collection bowl in stainless steel AISI 304, stamped and waterproof.Chimney in stainless steel AISI 304.Burners in cast iron treated waterproof, brass crown (with very high efficiency). Regulation of burners from 2 to 9kW by gas valve, pilot ignition and thermocouple safety, frontal accessibility allowing a very...
Tank dimensions: 510x465xh170 mm, for GN containers up to 150 mm. Made of stainless steel AISI 304, levelling feet.Tank in AISI 304 stainless steel, equipped as standard with a perforated bottom grid, a drain cock (ball valve) is placed on the front of the appliance.Electric heating, by means of stainless steel armoured resistances, placed under the bottom of the tank, outside. ON/OFF switch, temperature regulation from 30°C to 90°C, by thermostat.The appliance is built in compliance with all...
4 burners (9Kw) High Efficiency-Flexibility.Oven (10 kW) GN 2/1 (540x940xh300 mm). Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm), liquid collection bowl in stainless steel AISI 304, stamped and waterproof.Chimney in stainless steel AISI 304.Enclosure and oven door double-walled (stamped) made of stainless steel and provided with thermal insulation, lateral guides on 3 levels, door on spring hinges, stainless steel handle.Open burners in treated...

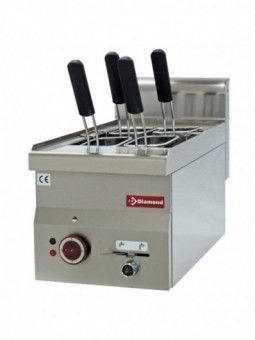

- Tank, dimensions 245x370x190 mm.- Made of stainless steel AISI 304. - AISI 316 stainless steel tank, thickness 15/10ths, resistant to salt corrosion and wear, with overflow for starches. The discharge valve (ball valve) is placed on the front panel of the appliance. The inside of the tank is provided with a double perforated bottom in AISI 304 stainless steel that protects the resistances from possible contact with the baskets. - Electric heating by means of armoured stainless steel...
4 burners (9Kw) High Efficiency-Flexibility.Oven (10 kW) GN 2/1 (540x940xh300 mm). Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped top (20/10 mm), liquid collection bowl in stainless steel AISI 304, stamped and waterproof.Chimney in stainless steel AISI 304.Enclosure and oven door double-walled (stamped) made of stainless steel and provided with thermal insulation, lateral guides on 3 levels, door on spring hinges, stainless steel handle.Open burners in treated...
- Tank, dimensions 545x370x190 mm.- Made of stainless steel AISI 304. - AISI 316 stainless steel tank, thickness 15/10ths, resistant to salt corrosion and wear, with overflow for starches. The discharge valve (ball valve) is placed on the front panel of the appliance. The inside of the tank is provided with a double perforated bottom in AISI 304 stainless steel that protects the resistances from possible contact with the baskets. - Electric heating by means of armoured stainless steel...
Tank GN1/1, dimensions 305x510xh300 mm.NB: baskets optional. Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped and waterproof top (20/10 mm) in stainless steel AISI 304.Chimney in stainless steel AISI 304."Stamped" tank in stainless steel AISI 316 with all corners rounded, thickness 15/10th, resistant to salt corrosion and usury, provided with an overflow for collection of starch separation and a double perforated bottom in stainless steel AISI 304. The water supply...
Tank, dimensions 545x370x190 mm. Made of stainless steel AISI 304.AISI 316 stainless steel tank, thickness 15/10ths, resistant to salt corrosion and wear, with overflow for starches. The discharge valve (ball valve) is placed on the front panel of the appliance. The inside of the tank is provided with a double perforated bottom in AISI 304 stainless steel that protects the resistances from possible contact with the baskets.Electric heating by means of armoured stainless steel resistors placed...
Tank GN1/1, dimensions 305x510xh300 mm.NB: baskets optional. Made in stainless steel AISI 304, adjustable feet in stainless steel.Stamped and waterproof top (20/10 mm) in stainless steel AISI 304.Chimney in stainless steel AISI 304."Stamped" tank in stainless steel AISI 316 with all corners rounded, thickness 15/10th, resistant to salt corrosion and usury, provided with an overflow for collection of starch separation and a double perforated bottom in stainless steel AISI 304. The water supply...

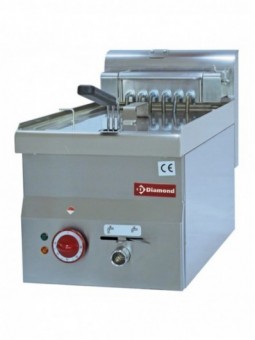

- Tank dimensions 250x370xh210 mm. - Quantity of oil in use, min. 9 litres, max. 10 litres. - Chrome-plated steel basket, dimensions 230x255xh110 mm.- Made of stainless steel AISI 304, adjustable levellers. - Deep-drawn" bowl in stainless steel AISI 304 with all internal corners rounded for easy and hygienic maintenance, provided with a cold zone, the (ball) drain cock of the bowl is placed on the front of the appliance. A chromium-plated steel wire grid is placed inside the bowl to retain...
Tank dimensions 300x400xh315 mm.Quantity of oil in use, min. 16 liters max. 18 liters.1 chrome steel basket, dimensions 270x360xh140 mm. Made of stainless steel AISI 304, adjustable feet in stainless steel.Pressed and sealed top (20/10 mm) in stainless steel AISI 304.Chimney in stainless steel AISI 304.Deep-drawn tank in AISI 304 stainless steel, with rounded corners and interior angles, equipped with a cold zone, ball valve for draining placed in the cabinet. Stainless steel lid. Oil...
- Tank dimensions 250x370xh210 mm. - Quantity of oil in use, min. 9 litres, max. 10 litres. - Chrome-plated steel basket, dimensions 230x255xh110 mm.- Made of stainless steel AISI 304, adjustable levellers. - Deep-drawn" bowl in stainless steel AISI 304 with all internal corners rounded for easy and hygienic maintenance, provided with a cold zone, the (ball) drain cock of the bowl is placed on the front of the appliance. A chromium-plated steel wire grid is placed inside the bowl to retain...
