refrigeration
Tous nos produits sont aussi disponibles en magasin.
- Top with 50 mm edge (15/10th)
- Included: 4 pairs of slides for 600x400 mm plates, per door
- 6 adjustable stainless steel feet.
- Can be installed on a base.
- Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
- Independent top top (removable), in stainless steel (food grade) AISI 304
- Stainless steel racks and slides (maximum capacity 8 slides, spacing 68 mm), allowing the plates to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
- Doors with ergonomic (not protruding) and reversible handle (see Kit, TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
- Heating resistor placed in the counter door, avoiding frost
- Front access to compressor unit, easy inspection
- Compressor unit in climate class 5 (40°C Temperature - 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
- Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
- Refrigerant gas R290.
- Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
- Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
- Automatic condensate evaporation (hot gas)
- CFC-free polyurethane insulation (60 mm)
- The device is built in compliance with all applicable standards (CE).
- Top superior in 15/10th, 50 mm thick.

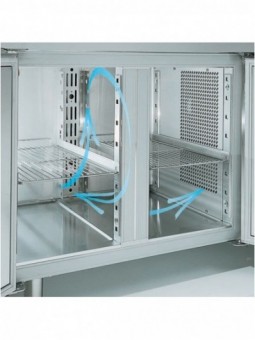

- Exceptional performance thanks to the forced piping of the refrigerated air, a uniform temperature.
- Monobloc" type group, equipped with an air filter (washable).
- Microprocessor (100% waterproof), with HACCP functions.

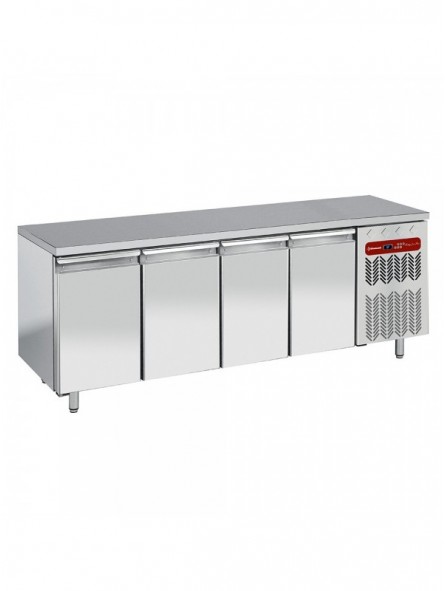

TP4B/H-R2
- Kw electrique
- 0.73
- Connexion électrique
- 230/1N 50HZ
- Puissance electrique neg
- -10°-20°
- Famille
- Congélation 4 portes
Dimensions :
| Longueur | 2550 | mm |
| Profondeur | 800 | mm |
| Hauteur | 900 | mm |
| Poids | 267 | kg |
- Top with 50 mm edge (15/10th)
- Included: 4 pairs of slides for 600x400 mm plates, per door
- 6 adjustable stainless steel feet.
- Can be installed on a base.
- Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
- Independent top top (removable), in stainless steel (food grade) AISI 304
- Stainless steel racks and slides (maximum capacity 8 slides, spacing 68 mm), allowing the plates to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
- Doors with ergonomic (not protruding) and reversible handle (see Kit, TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
- Heating resistor placed in the counter door, avoiding frost
- Front access to compressor unit, easy inspection
- Compressor unit in climate class 5 (40°C Temperature - 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
- Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
- Refrigerant gas R290.
- Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
- Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
- Automatic condensate evaporation (hot gas)
- CFC-free polyurethane insulation (60 mm)
- The device is built in compliance with all applicable standards (CE).
