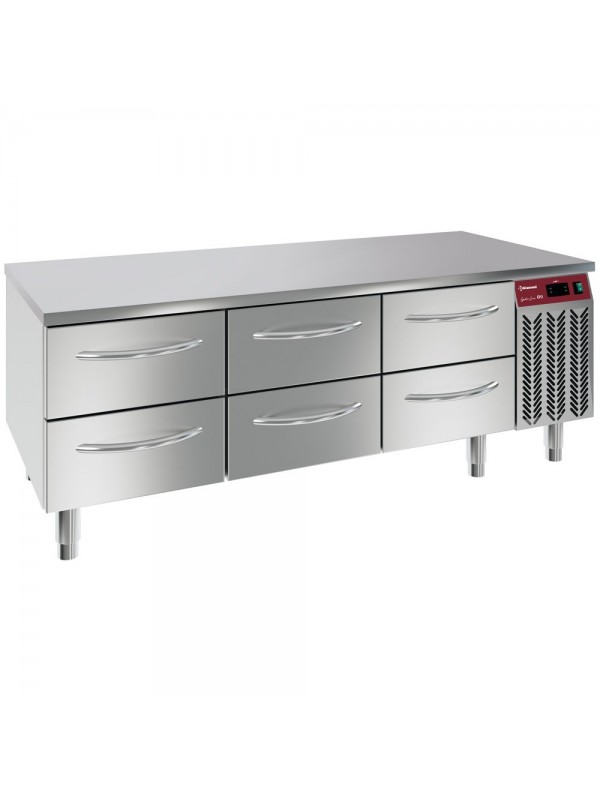

- 6 drawers version GN 1/1 (max. load Height 110 mm).
- 1 ventilated evaporators "treaty".
- 6 adjustable stainless steel feet.
- Monocoque design.
- Inside and outside (top included) manufactured in stainless steel AISI 304 (also the back).
- Stamped interior bottom, rounded angles and corners (no rough edges).
- Drawers with ergonomic handles, on telescopic runners, closed by magnetic pressure seals (easy replacement, no tools required).
- Class 5 compressor unit (40°C Temperature & 40% Humidity), built into cabinet (right), ventilated condenser.
- Front access to compressor unit for easy inspection.
- Ventilated evaporator, positioned between the doors.
- R290 refrigerant gas.
- Electronic controller, front panel control display with LED.
- Automatic evaporator defrost, number of defrosts factory-programmed (modifiable at will).
- Automatic condensate evaporation.
- CFC-free polyurethane insulation (50 mm).
- Built in compliance with all applicable CE standards.
- Bases with drawers on telescopic slides.
- Evaporator treated against the salt and the food acids "coating" .
- Electronic regulator.
N77/R316G-9E
- Family
- Réfrigérés 2x 3 tiroirs
- Electrical connection
- 230/1N 50-60Hz
- Electric kw
- 0.4
- Electric power pos
- -2° +8°
Dimensions :
| Longueur | 1600 | mm |
| Profondeur | 700 | mm |
| Height | 610 | mm |
| Weight | 170 | kg |
