• Cooling capacity rendered 1288 (W/f) for chamber volume 9,5 m³ / 9500 Lit. (T° internal 0° C & T° external +32° C).
• Refrigerant expansion by capillary.

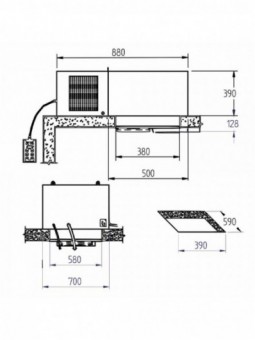

• Ceiling" refrigeration units.
• All units are supplied as standard with a high pressure switch and KVL valve as well as cables for door and light micro-switches.
• Separate control panel, connected to the unit by a 5m cable, control of the functions by microprocessor with touch-sensitive keys.
• Automatic hot gas defrosting with self-evaporation, as well as an overflow, water drain located below the evaporator. The evaporator drain pipe is equipped with a resistance to prevent ice formation.
• Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
• Refrigerant gas R452a.
• Window lights delivered as standard with a micro-switch for the door.

INFO:
Attention: As standard, the ideal ambient operating temperature must not be lower than 10°C. If this is not the case, the following must be provided: compressor preheating (S-PR-R), a pressure switch for the condenser fan (S-PVC-R) and a heated electrical panel (S-TEC-R). In this case, the operating temperature cannot be lower than -5°C. The unit must be protected from the weather when installed outdoors.

PLUS:

• "Extra-flat" unit for easy installation.
• Easily removable panels for easy access in case of intervention.
• All units are supplied with a high pressure switch as standard. The negative groups are equipped with a thermostatic valve.
