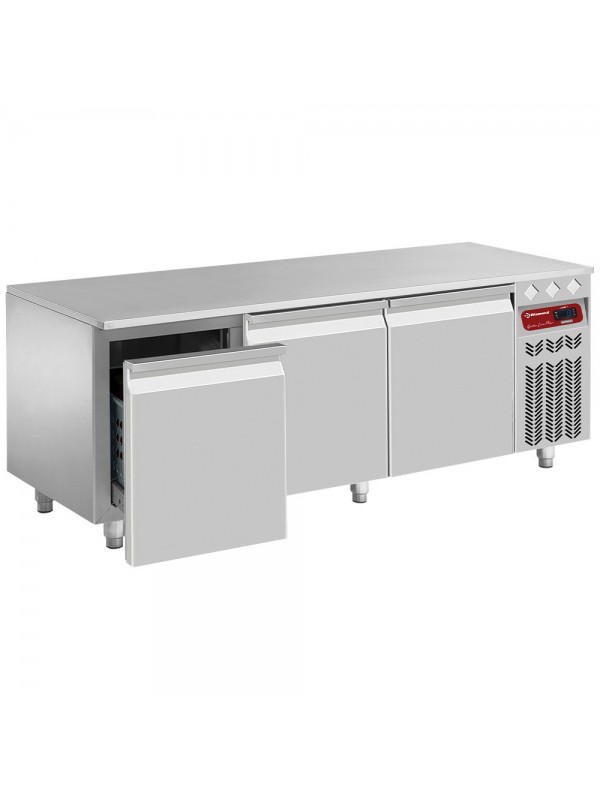

- 3 drawers version GN 1/1max. load Height 320 mm
- 2 ventilated evaporators "treaty".
- 6 adjustable stainless steel feet.
- Monocoque design
- Inside and outside (top included) manufactured in stainless steel AISI 441 (also the back).
- Stamped interior bottom, rounded angles and corners (without roughness).
- Drawers with ergonomic handle, on telescopic slides, "snap-fit" closure by magnetic joint (easy replacement without tools).
- Compressor unit climate class 4 (30°C Temperature & 55% Humidity), ), built into the cabinet (right), ventilated condenser.
- Frontal accessibility of the compressor group, easy inspection.
- Over-sized evaporator(s), ventilated or static (87% of relative humidity), placed between the doors.
- Refrigerant R290.
- Electronic regulator (under closed box, waterprooft), control front screen with blue LED.
- Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will).
- Condenser's automatic evaporation.
- Polyurethane insulation without CFC (50-60mm).
- The equipment is manufactured following the (CE) standards in force
- Bases with drawers on telescopic slides.
- Evaporator treated against the salt and the food acids "coating" .
- Electronic regulator (under closed box, warteproof).
N77/R316G-P9
- Family
- Réfrigérés 3 tiroirs
- Electrical connection
- 230/1N 50HZ
- Electrical connection
- 230/1N 50-60Hz
- Electric kw
- 0.16
- Electric power pos
- -2° +8°
Dimensions :
| Longueur | 1600 | mm |
| Profondeur | 700 | mm |
| Height | 705 | mm |
| Weight | 153 | kg |
- 3 drawers version GN 1/1max. load Height 320 mm
- 2 ventilated evaporators "treaty".
- 6 adjustable stainless steel feet.
- Monocoque design
- Inside and outside (top included) manufactured in stainless steel AISI 441 (also the back).
- Stamped interior bottom, rounded angles and corners (without roughness).
- Drawers with ergonomic handle, on telescopic slides, "snap-fit" closure by magnetic joint (easy replacement without tools).
- Compressor unit climate class 4 (30°C Temperature & 55% Humidity), ), built into the cabinet (right), ventilated condenser.
- Frontal accessibility of the compressor group, easy inspection.
- Over-sized evaporator(s), ventilated or static (87% of relative humidity), placed between the doors.
- Refrigerant R290.
- Electronic regulator (under closed box, waterprooft), control front screen with blue LED.
- Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will).
- Condenser's automatic evaporation.
- Polyurethane insulation without CFC (50-60mm).
- The equipment is manufactured following the (CE) standards in force
