• Cooling capacity rendered 1258 (W/f) for chamber volume 10,2 m³ / 10200 Lit. (T° internal -20° C & T° external +32° C).
• Refrigerant expansion by thermostatic valve.
• The low temperature units (HN) are supplied with a cable for the connection of the door resistor.

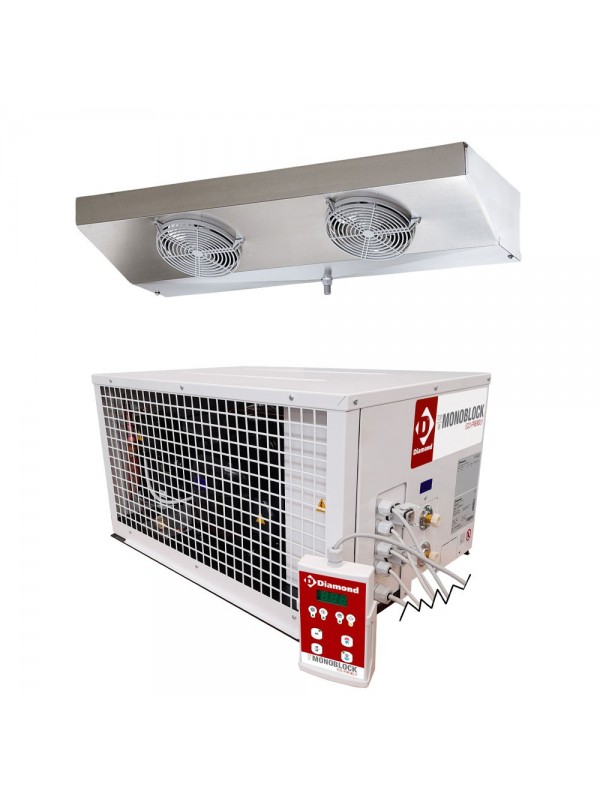

• Bi-block" refrigeration units.
• Due to its design, the condensing unit is suitable for outdoor installation and can be placed anywhere, floor, ceiling, wall,...
• Delivered with 2 wall brackets as standard.
• Pipes (pre-loaded) and cables are supplied for connection within a radius of 5 meters (10 meters optional).
• All units are supplied as standard with a high pressure switch and KVL valve, as well as cables for door and light microswitches.
• Control panel with separate touch-sensitive keys, connected to the unit by a 10 m cable
• Automatic defrosting by electric resistance, water flow located below the evaporator. The evaporator drain pipe is equipped with a resistance to prevent ice formation.
• Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
• Refrigerant gas R452a.
• Window lights delivered as standard with micro-switch for door.

INFO:
Attention: As standard, the ideal ambient operating temperature must not be lower than 10°C. If this is not the case, you must provide compressor preheating (H-PR-R), a pressure switch for the condenser fan (H-PVC-R) and a heated electrical panel (H-TEC-R). In this case, the operating temperature cannot be lower than -5°C.

PLUS:

• Easily removable panels for easy access in case of intervention.
• Defrosting by electric resistance.
• All units are supplied with a high pressure switch as standard. The negative units are equipped with a thermostatic valve.
