• Production capacity 200 baskets/hour
• Pre-wash + Washing + rinsing
• 2 forward speeds
• Predisposed for left-hand entry
• Load height 440 mm
• Water pressure reducer, equipped with pressure gauge.
• Made in AISI 304 Stainless Steel, of 12/10mm and 30/10mm thick, double skin thermal and acoustic insulation (-60db) with adjustable stainless steel feet.

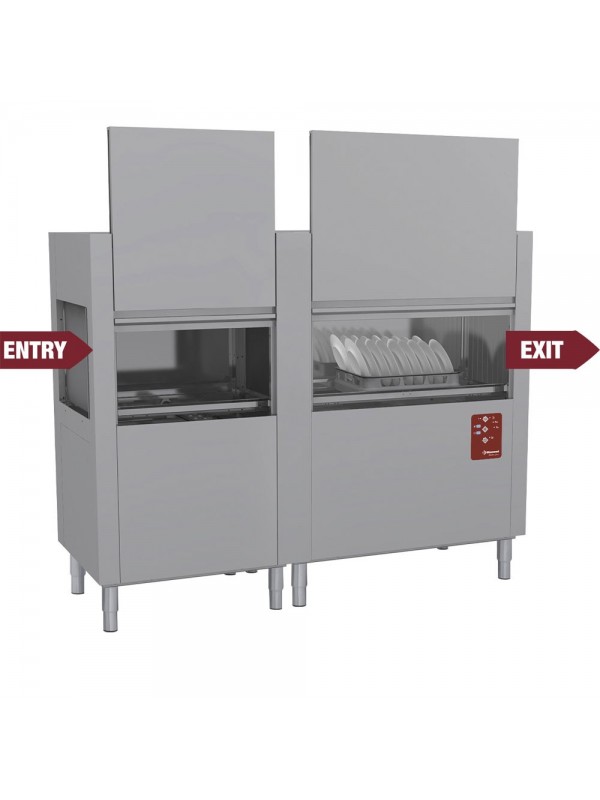

• Linear or angular configuration with left and right entry/feed tables
• Traction system with parallel stainless steel bars.
• Automatic advance system with 3 speeds.
• Ability to perform a continuous, basket-by-basket or delayed wash.
• "Reversible" traction system, right left entry.
• Counter balanced wide opening doors with stop in open position, for easy access to machine interior.
• Entry and exit water curtains.
• Pressed tank with rounded edges, resistant equipped for maintenance of high temperatures.
• Integrated, extractable filters, made in AISI 304 stainless steel situated above tanks.
• Automatic refill of tank water levels.
• Rinse Saver, reduces water and rinse aid consumption.
• Demountable stainless steel wash and rinse arm serviceable without the use of tools.
• Wash and pre-wash pump, in inclined position "auto empty" with stainless steel filter.
• Water entry equipped with pressure reduction system.
• Stainless steel boiler, with thermal insulation.
• 90°C thermostatic control.
• Waterproof "soft touch" digital control panel with tank and boiler temperature display, malfunctions automatically diagnosed.

Security:

• Low tension command (24V)
• End of cycle system stop.
• Micro stop switch for instant stop of doors
• Pump protection
• Traction system also protected by automatic stop, if intruding objects are detected

Equipped with:

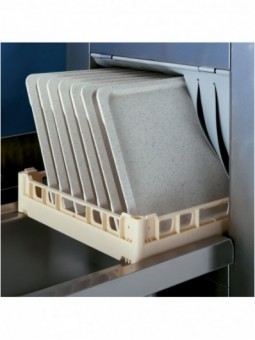

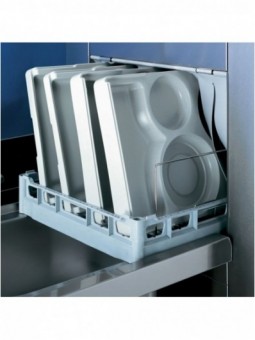

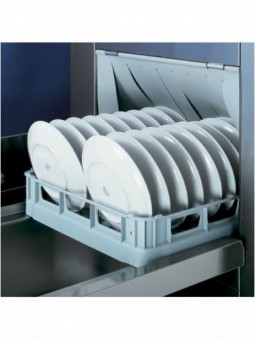

• DPP-18 18 plate 2 baskets

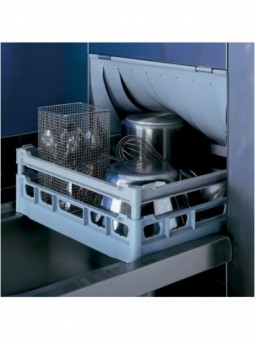

• DBB1 generic basket
• DG4 1 cutlery compartment

Traction Line

• Star Wash, saves water, energy and detergent...

Unlike traditional machines, Diamond® dishwashers are equipped with special wash arms. Each arm is equipped with a large number of jets which are formed and orientated to follow the washing propellers. The energy saved is transferred to produce a more powerful wash

• Integral Clean Wash, a conception with no drawback..

Moulded tanks, auto-drain pumps & wash chambers free of internal tubes and sharp edges,... these are somes of assets. 100% hygiene guarentee that meets vigorous standards.
- Full Control, integrated control system...
"soft touch" display gives Diamond® dishwashers simple and easy to follow functions. The par "DEL" illuminated display panel controls boiler and tank temperatures as well as automatic diagnostics, HACCP
normes, displaying an error message in case of malfunction.
