- For motor type: CA10/8/30 - CA12/12/45 - CVX/8M.
- Protection class: IP50
- Maximum motor power absorption: 8A
- Maximum light power absorption: 5A
- Variator for motor, light, and solenoid valve control.
- On/off switch and speed variator with potentiometer.
- On/off switch for lighting.
- Management of gas solenoid valve (230V/1N-50Hz, max. 1A)
- Protection fuse and speed calibration potentiometers MIN & MAX.

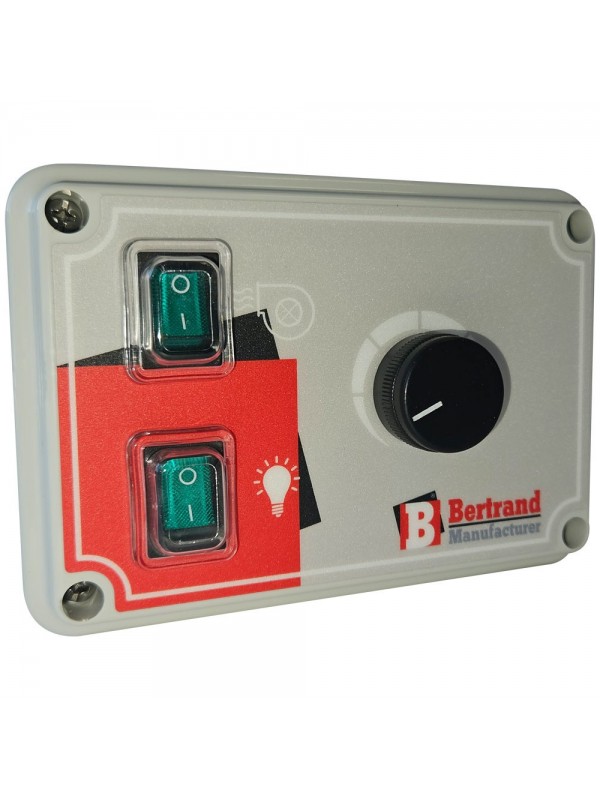

VK8/B
- Family
- Pour groupe prise directe
- Electrical connection
- 230/1N 60HZ
Dimensions :
| Longueur | 150 | mm |
| Profondeur | 110 | mm |
| Height | 130 | mm |
| Weight | 1 | kg |
- For motor type: CA10/8/30 - CA12/12/45 - CVX/8M.
- Protection class: IP50
- Maximum motor power absorption: 8A
- Maximum light power absorption: 5A
- Variator for motor, light, and solenoid valve control.
- On/off switch and speed variator with potentiometer.
- On/off switch for lighting.
- Management of gas solenoid valve (230V/1N-50Hz, max. 1A)
- Protection fuse and speed calibration potentiometers MIN & MAX.
