• For motor: CVX/4T - CVX/6T - CVX/8T
• Suitable for outdoor use, IP66 protection rating // NEMA 4X resistant to ultraviolet (UV) rays, grease, oil, and acids.
• Potentiometer for speed control.
• Forward/reverse selector.
• Power disconnect switch.

• Control panel with digital screen.
• Three-phase input / three-phase output (3x400V / 3x400V).
• EMC filter (electromagnetic compatibility).
• Input frequency: 48-62 Hz, output frequency: 0-500 Hz.
• Accepts an overload of 150% for 60 seconds (175% for 2.5 seconds).
• Intensive operation up to an ambient temperature of -20° to +50°C (storage temperature: -40° to +60°C).
• Quick commissioning.
• Basic parameters (factory preset) and "macro application" functions (industrial control, pump control, and fan control).
• Modbus RTU serial communication.
• Internal PI control.
• Device built in accordance with all current (CE) standards.

PLUS :

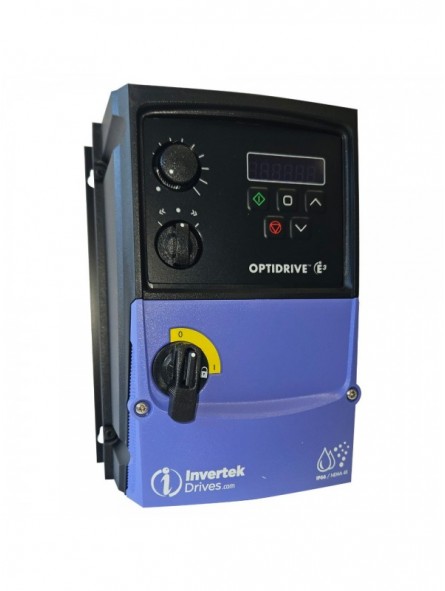

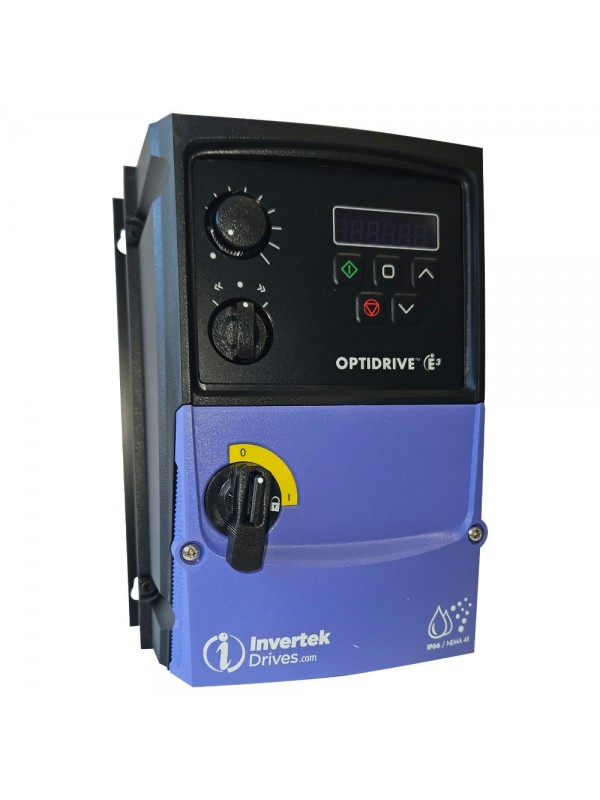

Compact and robust design, with quick commissioning and intuitive use. The three-phase frequency converters offer solutions for virtually all converter requirements, with a power range from 0.75 kW to 1.5 kW (max. 4.1A). Equipped with an EMC filter, IP20 (or IP66) protection rating, and an operating temperature range of -20°C to +50°C, they are suitable for all environments!
