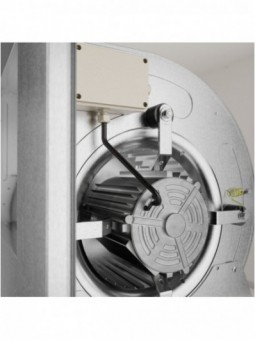

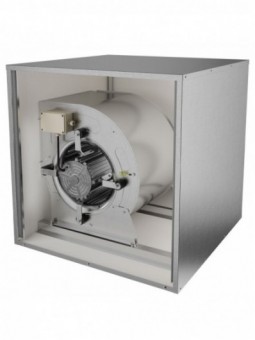

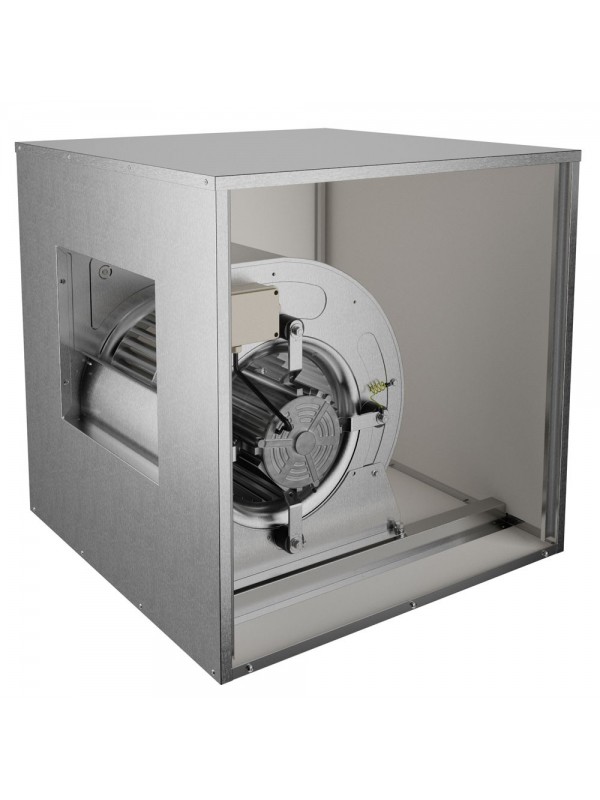

Centrifugal ventilator with isolated caisson
€1,170.00
Tax excluded
- Flow rate: 3000 m³/o. (Pressure drop 380 Pa).
- Centrifugal double-inlet ventilation units with built-in motor (operating temperature/resistance: -20° to 40°).
- Enclosed motor, IP54 protection rating.
- Galvanized steel casing with 5 mm internal sound insulation (polyurethane foam).
- Side inspection for after-sales service (S.A.V.).
CA10/8/30
- Family
- Prise directe / Monophasé
- Electrical connection
- 230/1N 50-60Hz
- Electric kw
- 0.55
Dimensions :
| Longueur | 600 | mm |
| Profondeur | 600 | mm |
| Height | 600 | mm |
| Weight | 36 | kg |
- Flow rate: 3000 m³/o. (Pressure drop 380 Pa).
- Centrifugal double-inlet ventilation units with built-in motor (operating temperature/resistance: -20° to 40°).
- Enclosed motor, IP54 protection rating.
- Galvanized steel casing with 5 mm internal sound insulation (polyurethane foam).
- Side inspection for after-sales service (S.A.V.).
