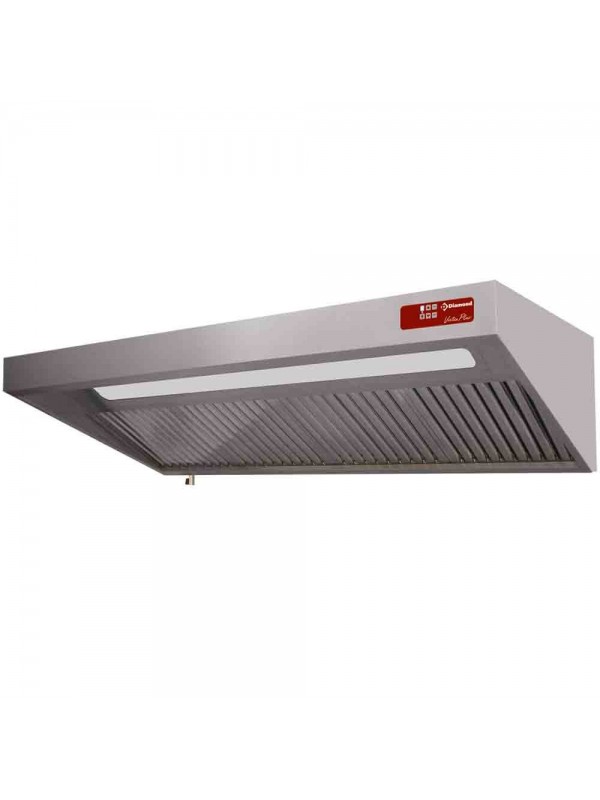

Complete hood, (8/9T-2500 M3/h) 120 Pa, lighting, variator, 5x filters
€1,503.84
Tax excluded
€1,928.00
- 5 Filters ANTI-FAT labyrinths (2x 400x500 & 3x 500x500 mm)

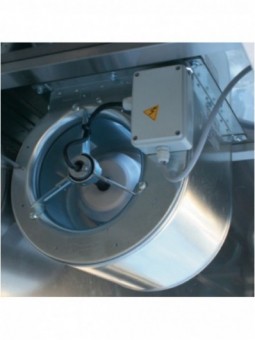

- Model with built-in centrifugal fan "watertight" (IP55) (central position, in vertical).
- Designed in stainless steel AISI 441, assembly by points welding.
- Filters anti-fat has stainless steel labyrinths AISI 430.
- Peripheral channel for the fat collection, fitted with a drainage tap.

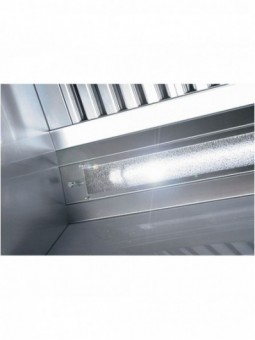

- Built-in lighting (LED) waterproof (IP65), high temperature.
- Speed regulator built-in the frontal.
INFO:
- Ventilator motor centrifufal on low energy (Energy saving). - Maximum evacuation 6 meters channels and 1 bend of 90° = 160Pa. Standard: adjustable wall brackets.
CSL2509-VTB
- Electric kw
- 0.48
- Electrical connection
- 230/1N 50HZ
- Family
- Profondeur 900 mm
Dimensions :
| Longueur | 2500 | mm |
| Profondeur | 900 | mm |
| Height | 460 | mm |
| Weight | 65 | kg |
- 5 Filters ANTI-FAT labyrinths (2x 400x500 & 3x 500x500 mm)
- Model with built-in centrifugal fan "watertight" (IP55) (central position, in vertical).
- Designed in stainless steel AISI 441, assembly by points welding.
- Filters anti-fat has stainless steel labyrinths AISI 430.
- Peripheral channel for the fat collection, fitted with a drainage tap.
- Built-in lighting (LED) waterproof (IP65), high temperature.
- Speed regulator built-in the frontal.
