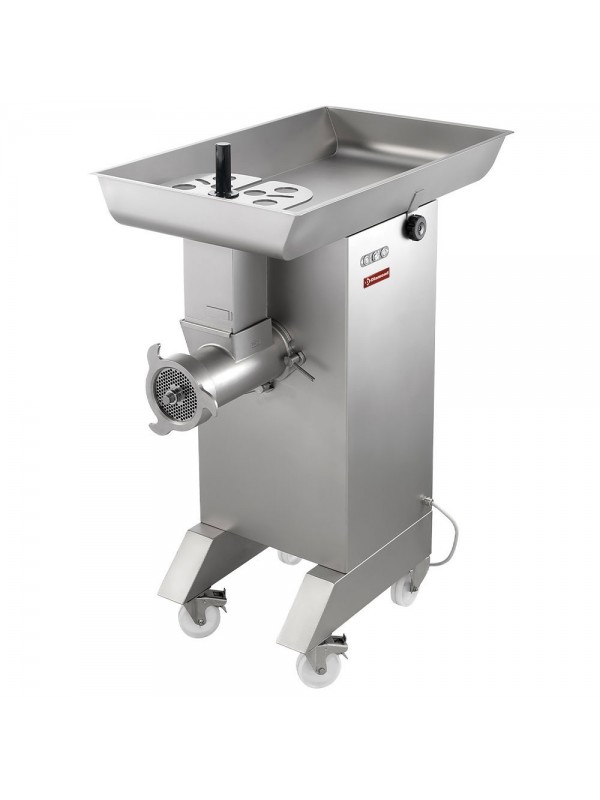

Stainless steel meat mincer N° 42, Ø 4.5 mm, 800/1000 kg/h, with wheels
€6,450.29
Tax excluded
€8,377.00
- With adapter for hamburger device.
- Designed for high productivity.
- AISI 304 stainless steel chassis (washable with water jet), standard on stainless steel base with wheels fitted with brakes.
- Ventilated motor (IP 55 ) designed for intensive use.
- Driven by hermetically sealed gear motor, under oil bath, double liquid protection (between mincer head and motor).
- Mincer head in AISI 304 stainless steel, quick bayonet fixing device (no tools required), completely dismountable, easy and hygienic maintenance.
- Large upper hopper (563x900xh120 mm) in AISI 304 stainless steel (removable), safety device by microswitch, with "square" introduction for a very quick second passage.
- Low voltage 24 V controls, in stainless steel IP67 protection class, with rotation inversion (in case of blockage).
- Unit built in compliance with the (CE) standards in force.
TTGD-42/DC-PDH
- Family
- Groupe en acier inox / SPECIAL
- Electrical connection
- 400-230/3N 50Hz
- Electric kw
- 3.68
- Horse power
- 5
Dimensions :
| Longueur | 560 | mm |
| Profondeur | 970 | mm |
| Height | 1126 | mm |
| Weight | 116 | kg |
- With adapter for hamburger device.
- Designed for high productivity.
- AISI 304 stainless steel chassis (washable with water jet), standard on stainless steel base with wheels fitted with brakes.
- Ventilated motor (IP 55 ) designed for intensive use.
- Driven by hermetically sealed gear motor, under oil bath, double liquid protection (between mincer head and motor).
- Mincer head in AISI 304 stainless steel, quick bayonet fixing device (no tools required), completely dismountable, easy and hygienic maintenance.
- Large upper hopper (563x900xh120 mm) in AISI 304 stainless steel (removable), safety device by microswitch, with "square" introduction for a very quick second passage.
- Low voltage 24 V controls, in stainless steel IP67 protection class, with rotation inversion (in case of blockage).
- Unit built in compliance with the (CE) standards in force.
