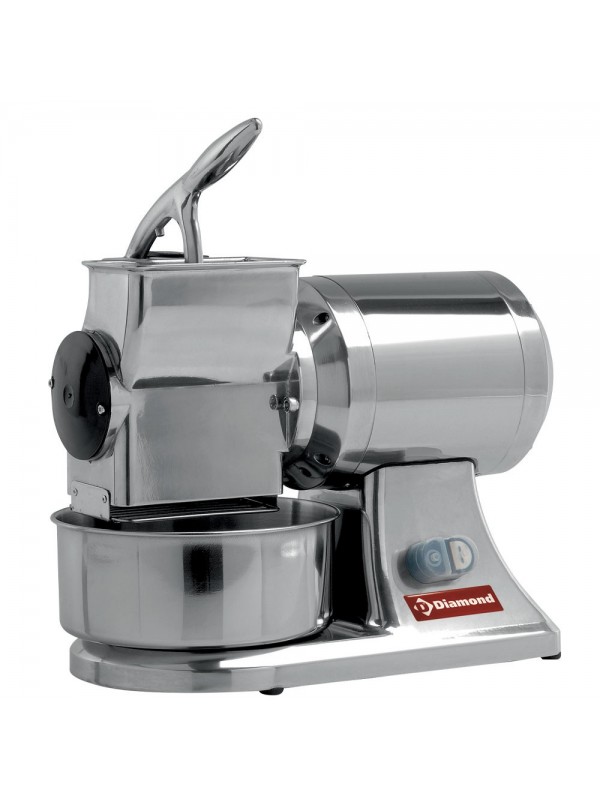

- Good for big production: 90 kg/h.
- Frame in aluminium alloy and stainless steel.
- Functionning by "cylinder" roll Ø 140 mm, provided with an upper lever (with safety microswitch device),
opening 140x80 mm.
- Gear traction in oil bath.
- Engine in 1400 Tr / Minutes, equipped with thermal protection, low voltage control (24 V) Protected.
GM-BG
- Family
- Rouleau diam. 140 mm
- Electrical connection
- 230/1N 50HZ
- Electrical connection
- 230/1N 50-60Hz
- Electric kw
- 1.1
- Horse power
- 1.5
Dimensions :
| Longueur | 420 | mm |
| Profondeur | 270 | mm |
| Height | 380 | mm |
| Weight | 22 | kg |
- Good for big production: 90 kg/h.
- Frame in aluminium alloy and stainless steel.
- Functionning by "cylinder" roll Ø 140 mm, provided with an upper lever (with safety microswitch device),
opening 140x80 mm.
- Gear traction in oil bath.
- Engine in 1400 Tr / Minutes, equipped with thermal protection, low voltage control (24 V) Protected.
