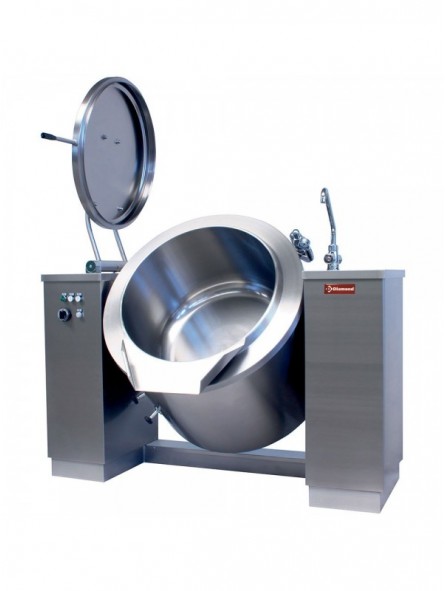

Electric Tilting Boiling pan 500 liters, indirect heating
€29,373.24
Tax excluded
€37,658.00
- Tank diameter 1060 mm, depth 600 mm.
- "Deep-drawn" tank, bottom made of polished AISI 316 stainless steel (40/10 mm thick) wall made of 304 stainless steel (25/10 mm thick). Indirect heating, double jacket made of 304 stainless steel (20/10 mm thick).
- Made of AISI 304 stainless steel, version on AISI 304 stainless steel columns (delivered with floor fixing kit). Covering: made of AISI 304 stainless steel (10/10 mm thick). Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- "Deep-drawn" tank wall made of 304 stainless steel, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear. Water tap for filling the tank.
- Motorized tank tilting. Operation on the front side.
- "Deep-drawn" cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket. Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Electric heating by INCOLOY resistors immersed in the double envelope, power regulation by means of an energy regulator.
- Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch.
- Working temperature up to 100°C.
EMB/500I
- Electric kw
- 48.5
- Electrical connection
- 400/3N 50-60Hz
- Family
- Marmites / indirect / Basculantes
Dimensions :
| Longueur | 2050 | mm |
| Profondeur | 1300 | mm |
| Height | 1200 | mm |
| Weight | 610 | kg |
- Tank diameter 1060 mm, depth 600 mm.
- "Deep-drawn" tank, bottom made of polished AISI 316 stainless steel (40/10 mm thick) wall made of 304 stainless steel (25/10 mm thick). Indirect heating, double jacket made of 304 stainless steel (20/10 mm thick).
- Made of AISI 304 stainless steel, version on AISI 304 stainless steel columns (delivered with floor fixing kit). Covering: made of AISI 304 stainless steel (10/10 mm thick). Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- "Deep-drawn" tank wall made of 304 stainless steel, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear. Water tap for filling the tank.
- Motorized tank tilting. Operation on the front side.
- "Deep-drawn" cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket. Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Electric heating by INCOLOY resistors immersed in the double envelope, power regulation by means of an energy regulator.
- Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch.
- Working temperature up to 100°C.
